Smev Sink and Hob Units

The SMEV MO9222R and MO 9222L caravan and motorhome hob and sink combination glass lid has an electronic 12 volt ignition, safety ignition system, detachable pot grids that are easy to clean, two integrated lids of heat resistant safety glass, tap fitting inside (taps not included). All SMEV caravan hob and sink combinations are designed using high grade materials and are manufactured to the highest standards to provide an outstanding finish.

Smev 9222
Left hand version

Smev 9222
Right Hand Version

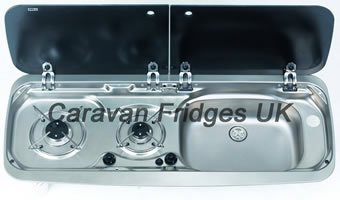

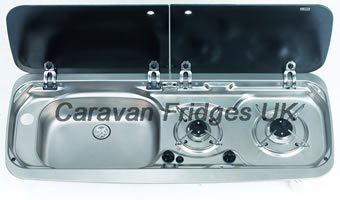

The SMEV MO9222 - 2 Burner Hob with Sink

Smev MO9222L

Smev MO9222R

Smev MO9222L with tap

Smev MO9222R with tap

Model
Voltage	12 volts DC (electric ignition)
Output:	2.8 kW
Gas consumption:	204 g/h
Gas Supply pressure:	30 mbar
Number of burners:	2
Quality Features:	2 Integrated heat-resistant saftey glass lids, Detachable chromed pan support, enamelled burner caps, ressed controls, electronic ignition, AC540 siphon, rubber seal, supplied with hole for tap [ Ø 39mm]
Dimensions (W x H):	900 x 370 mm
Test mark:	CE Approved

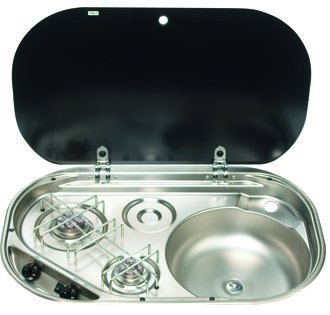

The SMEV MO8322RM - 2 Burner Hob with Sink

Smev MO8322R Sink and Hob MO8322RM

MO8322RM with tap

The SMEV MO8322R caravan and motorhome hob and sink combination with a glass lid has an electronic 12 volt ignition, safety ignition system, detachable pot grids that are easy to clean, integrated lid of heat resistant safety glass, tap fitting inside (taps not included). All SMEV caravan hob and sink combinations are designed using high grade materials and are manufactured to the highest standards to provide an outstanding finish.

Model
Voltage	12 volts DC (electric ignition)
Output:	2.8 kW
Gas consumption:	204 g/h
Gas Supply pressure:	30 mbar
Number of burners:	2
Quality Features:	Integrated heat-resistant saftey glass lid, Detachable chromed pan support, enamelled burner caps, ressed controls, electronic ignition, AC540 siphon, rubber seal, supplied with hole for tap [ Ø 39mm]
Dimensions (W x H):	680 x 440 mm
Test mark:	CE Approved

The SMEV MO8821RM/MO8821LM - 1 Burner Hob with Sink

SMEV MO8821 Combi Hob & Sink

The SMEV MO8821 caravan and motorhome hob and sink combination with a glass lid has an electronic 12 volt ignition, safety ignition system, detachable pot grids that are easy to clean, integrated lid of heat resistant safety glass, tap fitting inside (taps not included). All SMEV caravan hob and sink combinations are designed using high grade materials and are manufactured to the highest standards to provide an outstanding finish.

Model	MO8821
Voltage	12 volts DC (electric ignition)
Output:	1.0 kW
Gas consumption:	73 g/h
Gas Supply pressure:	30 mbar
Number of burners:	1
Quality Features:	Integrated heat-resistant safety glass lid, comfortable drainer/hob cover, detachable chromed pan support, stainless steel burner cap, safety ignition system, recessed controls, Piezo ignition, AC 540 siphon, rubber seal, waste tray, supplied with hole for tap (Ø 39 mm)
Dimensions (W x H):	525 x 152 x 421 mm
Test mark:	CE Approved

Right Hand Sink £	Left Hand Sink £
Right Hand sink with tap £	Left Hand Sink with tap £

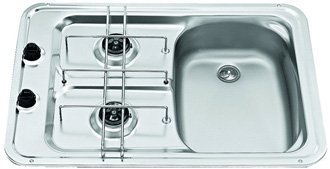

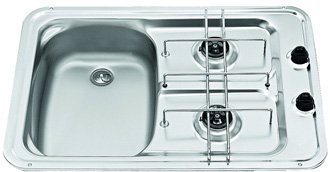

The SMEV MO917LM/MO917RM- 2 Burner Hob with Sink

Smev MO917 sink and hob

Smev MO917L

Smev MO917R

The SMEV MO917L/MO917R caravan and motorhome hob and sink combination has a safety ignition system, detachable pot grids that are easy to clean, tap fitting outside (taps not included). All SMEV caravan hob and sink combinations are designed using high grade materials and are manufactured to the highest standards to provide an outstanding finish.

Model	MO917L/MO917R
Output:	1 x 1.0 KW 1 x 1.8KW
Gas consumption:	204 g/h
Gas Supply pressure:	30 mbar
Number of burners:	2
Quality Features:	Detachable chromed pan support, Stainless steel burner caps, recessed controls, safety ignition system, AC540 siphon, rubber seal
Dimensions (W x H x D):	600 x 120 x 420 mm
Test mark:	CE Approved

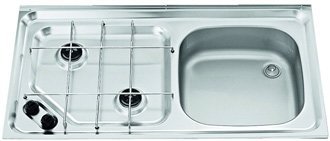

The SMEV MO921 - 2 Burner Hob with Sink

Smev MO921 caravan hob and sink

image shows MO921R

Smev MO921L

Smev MO921R

The SMEV MO921R & MO921L caravan and motorhome hob and sink combination has a safety ignition system, detachable pot grids that are easy to clean, tap fitting outside (taps not included). All SMEV caravan hob and sink combinations are designed using high grade materials and are manufactured to the highest standards to provide an outstanding finish.

Model
Output:	2.8 kW
Gas consumption:	204 g/h
Gas Supply pressure:	30 mbar
Number of burners:	2
Quality Features:	Detachable chromed pan support, enamelled burner caps, ressed controls, AC540 siphon, rubber seal
Dimensions (W x H):	800 x 420 mm
Test mark:	CE Approved

The SMEV MO911 - 2 Burner Hob with Sink

Smev MO911 Caravan Hob and sink

image shows MO911L

Smev MO911L

Smev MO911R

The SMEV MO911L caravan and motorhome hob and sink combination has a safety ignition system, detachable pot grids that are easy to clean, tap fitting outside (taps not included). All SMEV caravan hob and sink combinations are designed using high grade materials and are manufactured to the highest standards to provide an outstanding finish.

Model
Output:	2.8 kW
Gas consumption:	204 g/h
Gas Supply pressure:	30 mbar
Number of burners:	2
Quality Features:	Detachable chromed pan support, enamelled burner caps, ressed controls, AC540 siphon, rubber seal
Dimensions (W x H):	800 x 320 mm
Test mark:	CE Approved

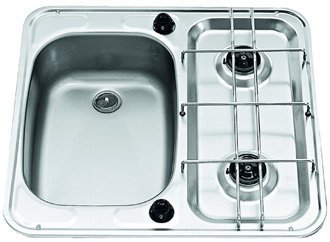

The SMEV MO927 - 2 Burner Hob with Sink

Smev MO927 Caravan sink and hob

image shows MO927LM

Smev MO927L

Smev MO927R

The SMEV MO927R & MO9271L caravan and motorhome hob and sink combination has a safety ignition system, detachable pot grids that are easy to clean, tap fitting outside (taps not included). All SMEV caravan hob and sink combinations are designed using high grade materials and are manufactured to the highest standards to provide an outstanding finish.

Model
Output:	2.8 kW
Gas consumption:	204 g/h
Gas Supply pressure:	30 mbar
Number of burners:	2
Quality Features:	Detachable chromed pan support, enamelled burner caps, ressed controls, AC540 siphon, rubber seal
Dimensions (W x H):	490 x 460 mm
Test mark:	CE Approved

	Smev Folding Plastic Tap Folding Tap with Lever Mixer Control Chrome finish, built in micro switch, fits all smev sinks with tap cut out (Ø39mm) £
