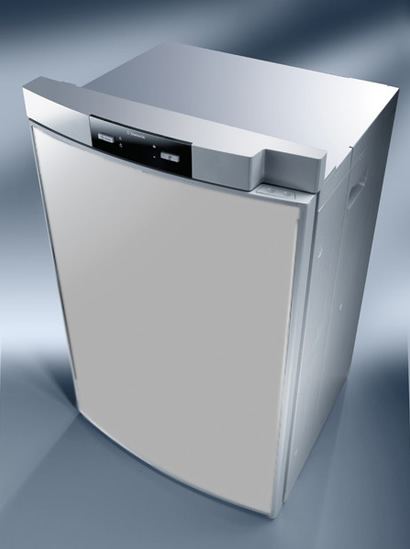

Dometic RM8401 Caravan Fridge

Modern absorption fridge for use in motorhomes and caravans

Dometic RM-8401 3 way fridge
dometic rm8401
dometic 8401 fridge diagram



Dometic 8 Series RM8401 absorption fridge

Easy to use, stylish and ultra-efficient. The Dometic RM8401 fridge sets new standards for absorption refrigerators. Innovative designs and colourful accents transform the high-quality appliances into stylish design pieces. On the outside, décor panels help them blend in with furniture while the inside is illuminated with energy efficient LED lights that radiate a pleasant cool blue light. A host of user friendly features add the finishing touch. The Dometic RM8401 caravan fridge is available with the MES system (Manual Energy Selector) which has an electronic reigniter, which registers a dying flame and reignites it. Simply turn the controls to select the energy source manually, thermostatic control for all energy sources. The 8-Series models consume up to 15% less 12 V energy when operating on gas.



Installation Manual for RM8401 Absorption Fridge Installation Manual for RM8401 Fridge

Operation Manual for RM8401 Fridge Operation Manual for Dometic RM8401

Dometic RM8401 3 way 95 Litre caravan fridges

  • 3-way: 12 Volt DC + 230 Volt AC + gas (30 mbar).
  • RM8401 Refrigerator +7°C, freezer up to -12°C at up to 32°C ambient temperatures.
  • Dometic RM 8401 replaces old model 7-series Dometic RM7361.
  • For caravan, camper vans and rv motorhomes.

Features on RM8401 caravan fridge

  • Full width removable freezer compartment: 8 litres. Create your own space after removal of the freezer compartment, you can optimised use of the interior space in your 8 series fridge with an additional shelf.
  • MES - Manual Energy Selector
  • Thermostatic control for all operating modes
  • Fingertip door opening
  • Interior light.
  • Door with magnetic seal, replaceable door seals.
  • Door locking with vent option
  • User-friendly control panel
  • Flexible arrangement of shelves.
  • Dometic RM8401 caravan refrigerators come in left or right hand hinge.
  • Ergonomic door shelves with leakage protection.
  • Dometic RM8401 caravan refrigerators has a tilt tolerance of 6 degrees



All Dometic 8 Series fridges come with fixed door hinges.  The door hinges are on the left hand side as standard (as image shows), if you would like the hinges on the right hand side, please contact us.

For more information please call us on 0151 334 0222

Model RM8401
Gross Capacity (litres)

Without freezer compartment: 95

With freezer compartment: 90

Inc. freezer compartment: 8

Cooling Capacity

Refrigerator +7°C, freezer compartment up to -12°C at ambient temperatures up to 32°C (equivalent to climate class SN)

Energy Sources 12V/230V/LPG
Dimensions (mm) H821 x W486 x D569
Net Weight (kg) 27.5
Material Cabinet, door and panel: plastic
Colour Cabinet: black-grey, Door: silver-grey
Gas Ignitor Electronic Gas Ignition
Gas Control Thermostat

Maximum Input
Gas
Electric 230v (watts)
Electric 12v (watts)

-
18.3
125
120

Consumption
Electric kWh/24 hrs
gas g/24 hrs
-
2.0 - 2.2
250 - 270
  • Removable freezer
  • Innovative locking system with fingertip-opening
  • Flexible and functional shelf-system
  • Less energy consumption
  • Less weight up to 10%
  • Manual Energy Selector [MES] with electronic gas ignition, thermostatic control for all operating modes
Test Marks Certified to European Ga13-Nov-201206/28/EC (Automotive EMC Directive)
